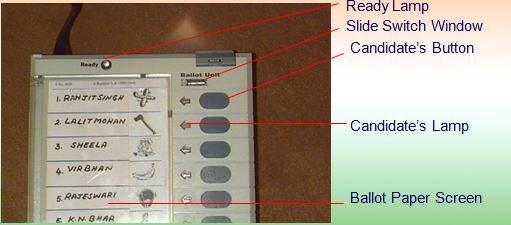

The ready lamp glows when the unit is switched on
The slide switch is used to set the no of the unit, i.e it is set to 1 if there are only 16 candidates and 1 for the first and 2 for the second if there are 17 to 32 candidates and so on
The candidate’s lamp glows indicating to the voter that his/her vote is cast in favor of that candidate
After the ballot paper is placed and aligned the screen is put in place and sealed.
Candidate button is the button which is pressed by the voter. Masking tab is used to mask the candidate buttons which are not in use; ie if there are only 8 candidates the remaining switches from 9 to 16 are masked and cannot be operated
